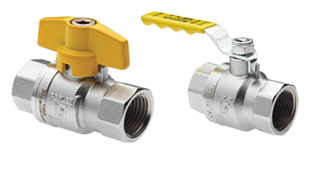

PB700
Chromium plated brass full bore ball valve
(yellow lever handle) PN40, threaded ends to BS EN 10226 (BS 21 taper)
Features
•ALL SIZE RATED PN40
•FULL BORE
•QUARTER TURN OPERATION
•BLOW-OUT AND VANDAL-PROOF ASSEMBLY.
•¼” TO 4” SIZES
•P.T.F.E (TEFLON) BALL SEALS
•DOUBLE ‘O’ RING VITON STEM SEALS
•BS 21 TAPER THREAD
PB500
PB500: Chromium plated brass full bore ball valve (Yellow Lever Handle) PN25
Features
•ALL SIZE RATED PN25
•FULL BORE
•QUARTER TURN OPERATION
•BLOW-OUT AND VANDAL-PROOF ASSEMBLY.
•¼” TO 4” SIZES
•P.T.F.E (TEFLON) BALL SEALS
•VITON ‘O’ RING STEM SEALS.
•BS 21 TAPER THREAD
•ANSI (NPT) AMERICAN TAPER THREAD(AT)

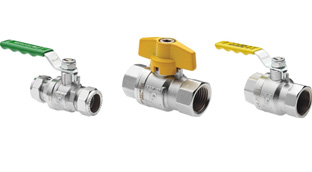

PB300
PB300: Chromium plated brass full bore ball valve
Features
•ALL SIZE RATED PN16
•FULL BORE
•QUARTER TURN OPERATION
•BLOW-OUT AND VANDAL-PROOF ASSEMBLY.
•15MM TO 54 MM SIZES
•P.T.F.E (TEFLON) BALL SEALS
•VITON ‘O’ RING STEM SEALS.
•PRESTEX COMPRESSION ENDS TO EN 1254/2
Bronze globe valve
BS 5154 PN32 Series B/NM, non metallic renewable disk
Features
•BS 5154 PN32 SERIES B/NM
•RISING STEM
•P.T.F.E RENEWABLE DISK
•HIGH QUALITY PTFE PACKING
•BS 21 TAPER THREAD
•ANSI (NPT) AMERICAN TAPER THREAD (AT)
•ISO 228 (BS 2779) PARALLEL THREAD (PT)

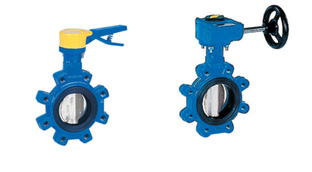

Cast iron butterfly valve
